Clay Paky Golden Spot 1200 7ks

Dôvod predaja- zbavujem sa nepotrebnej techniky na sklade.

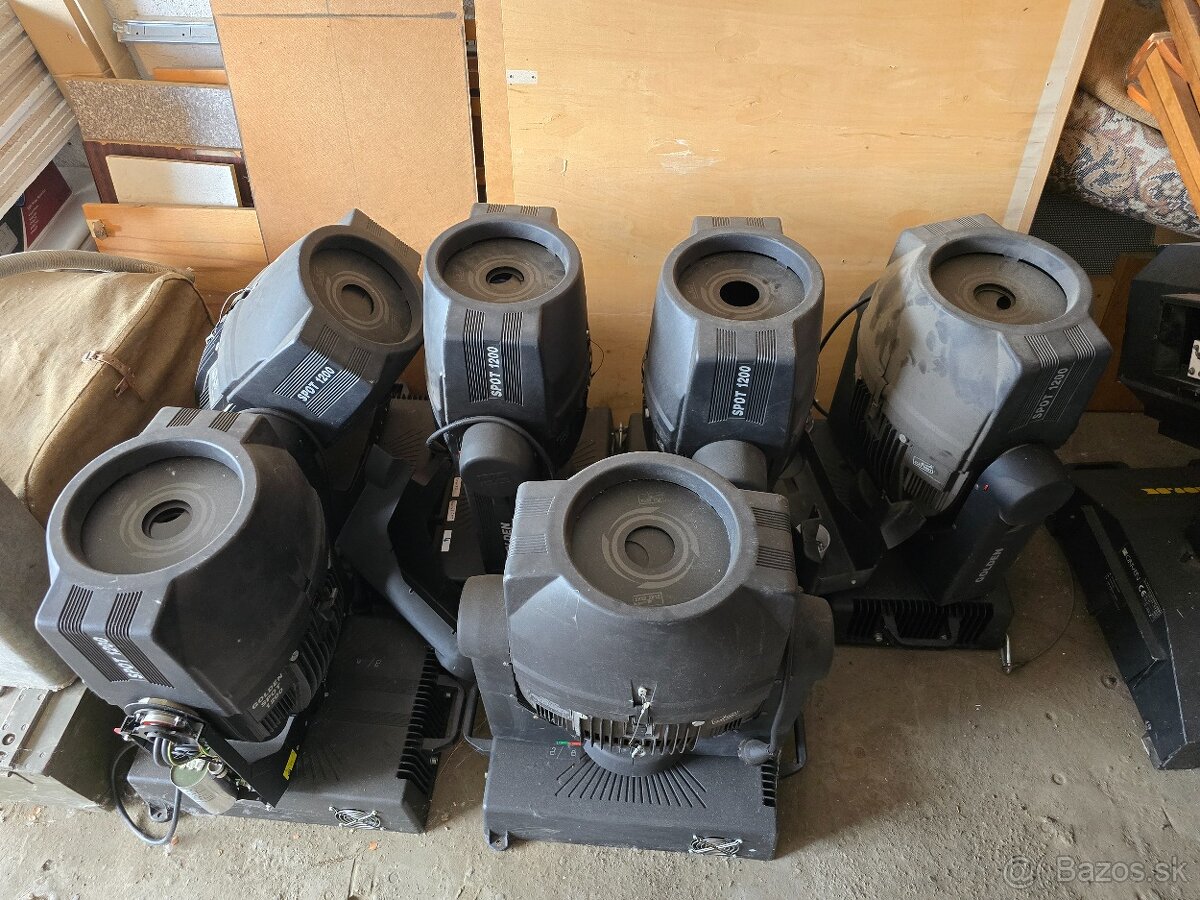

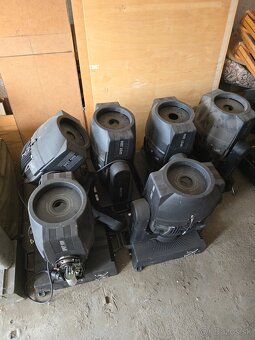

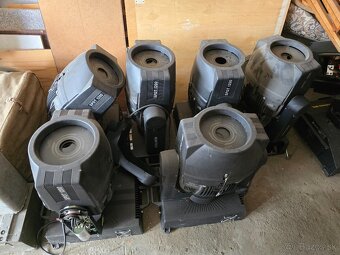

Predám 6ks a 1ks na náhradné diely profesionálnych rotačných hlavíc Clay Paky Golden Spot 1200 bez caseov.
Cena za 1ks.
Dohoda na cene možná.

Power supplies available
• 230V 50Hz
• 240V 50Hz
• 208V 60Hz
• 200V 50Hz
• 200V 60Hz


The projector is designed to operate at the mains frequency
and voltage given on the electrical data label on the base of
the appliance.

Input power
1700VA at 230V 50Hz (pf correction 140µF standard).

Lamp
Discharge lamp with built-in power supply unit.
• Type HMI 1200W / S

- Cap SFc 10-4
- Color temperature 6000 K
- Luminous flux 110000 lm
- Average life 750 h
- Any working position

Motors
11 stepper motors, operating with microsteps, totally micro-
processor controlled.

Optical unit
• Twin lens condenser.
• Spherical reflector with a high luminous efficiency.

Channels
10, 12 or 13 control channels.
1 - Iris
2 - Color Disc 1
3 - Color Disc 2, Prism & Frost
4 - Dimmer / Stopper / Strobe
5 - Pan
6 - Tilt
7 - Rotating Gobo Select
8 - Gobo rotation
9 - Fixed gobo select
10 - Focus
11 - Pan end
12 - Tilt end
13 - Gobo end

Inputs
• RS232 / 423
• DMX 512

Movable body
• Movement by means of two stepper motors, controlled by

microprocessor.

Automatic repositioning of PAN and TILT after accidental
movement not controlled by control unit.

Travel:
- PAN = 450 °
- TILT = 252 °

Maximum speeds:
- PAN = 4.0 sec (360 °)
- TILT = 3.2 sec (252 °)

Resolution:

- PAN = 1.76 °
- PAN FINE = 0.007 °
- TILT = 0.98 °
- TILT FINE = 0.004 °

IP20 protection rating
• Protected against the entry of solid bodies larger than

12mm (0.47 """""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""""").

No protection against the entry of liquids.
CE Marking
In conformity with the
