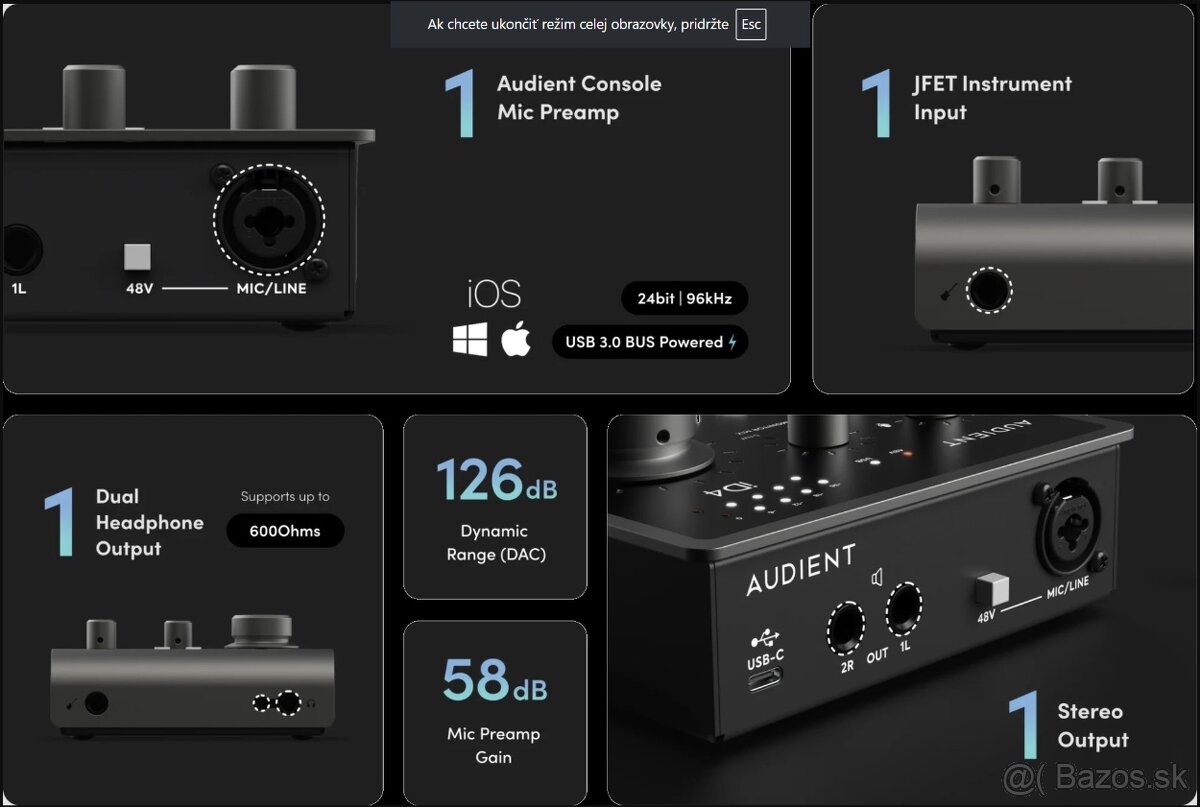

Zvuková karta Audient iD4

Predám plne funkčnú málo používanú zvukovú kartu Audient iD4. Nová stála vyše 200€.
Botom na e-maily neodpovednám. Cez PACKETU neposielam. Foto pošlem serióznym záujemcom na vyžiadanie.

Parametre:

D.I / Instrument Input
RANGE:40dB
LINEUP:12dBu = 0dBFS
THD+N @ 0dBu:0.1%
SNR:100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 20kHz

Microphone Preamplifier
GAIN RANGE: 58dB
LINEUP:12dBu = 0dBFS
MIC MAX INPUT LEVEL:12dBu
LINE MAX INPUT LEVEL:21dBu
INPUT IMPEDANCE (Mic):2.8k
INPUT IMPEDANCE (Line):>8k
PHANTOM POWER: (48V +/-4V @ 10mA/Channel)
THD+N @ 0dBu:0.00170%
THD+N @ 0dBu MAX GAIN:75dB
FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 40kHz

Analogue to Digital Converter
THD+N @ -1dBFS:0.001%
DYNAMIC RANGE:120dB A-Weighted
FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz

Line Outputs (DAC)
LINEUP:12dBu = 0dBFS
THD+N @ -1dBFS:0.0006%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>120dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphone Outputs
LINEUP:18dBu = 0dBFS
THD+N @ -1dBFS:0.0009%
DYNAMIC RANGE:125.5dB A-Weighted
CROSSTALK:>116dB
FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R:2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R:4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R:7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK:Tip (Left), Ring (Right) & Sleeve (Shield)

USB-C High Speed
BUS POWER:
MIN REQUIREMENT:0.9A @ 5V >=USB 3.0 Port
MAX REQUIREMENT:1.5A @ 5V USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS:2 (2 Analogue)
No. of OUTPUT CHANNELS:2 (2 Analogue)
DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz 0.65mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):48.0kHz 0.6mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):88.2kHz 0.33mS
DSP MIXER LATENCY ROUND TRIP (in-to-out):96.0kHz 0.31mS
